MA90 Series

Why Use a Tangential Cutter

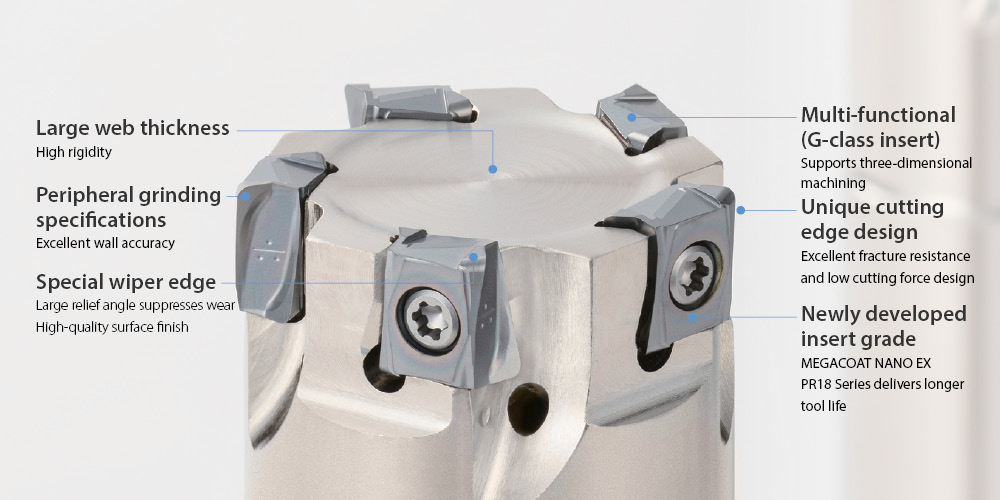

Available in a variety of inch and metric end mill, face mill, and modular head sizes, the MA90 gives users additional benefits than are offered from conventional cutters. The MA90 mills are designed with rigidity and ease-of-use in mind. Due to its design with tangentially mounted inserts where the insert screws are on the side, cutting forces are directed into the insert pocket corner. On conventional mills where the screw is on the front, cutting forces directed over the edge of the insert can build tension on the screw. The tangential design also allows for more teeth per diameter, better chip evacuation, and larger web thickness giving a significant amount of rigidity to the body.

KYOCERA's Latest Coating Technology

When paired with the latest PR18 Series inserts, the MA90 demonstrates its capability to effortlessly and reliably tackle various materials, maintaining the level of performance that machinists have grown accustomed to from KYOCERA products. PR18 Series insert grades incorporate proprietary MEGACOAT NANO EX coating technology, setting a new standard for wear resistance and durability. By using a unique double lamination technique with special nano multi-layers for abrasion, wear, and heat resistance, this coating surpasses conventional grades, delivering superior performance and extending the lifespan of the tools.
