Printed Circuit Board Series 2350

Series 2350

Low Fracture Updraft Fish Tail Routers

Chipbreaker style updraft router designed with a cutting force reduction geometry leading to minimal routed edge fracturing and superior edge finish.


Diameter Range
1.20mm

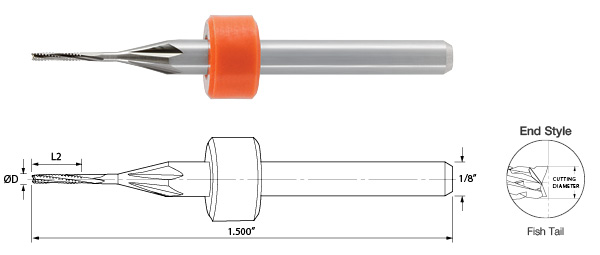

Series 2350 Fish Tail Diagram

STANDARD Flute Length (Metric)

Part
Number		 Router
Size		 Dimensions (mm) End
Style
Cutting Dia.
(ØD)		 Flute Length
(L2)
2350.0472.276 1.20mm 1.200 7.000 Fish Tail
PCB Ring

Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
